Mamba-interview/MAMBA HD

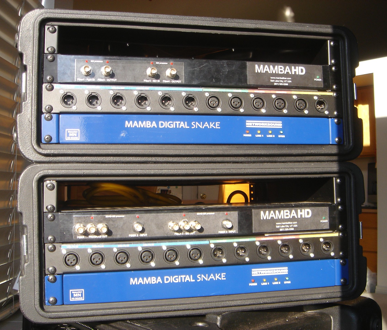

The less is more box. Pictured with optional MambaHD video system, which can be added to ANY Mamba audio package.

Audio paths to the truck include inputs for 4 mic and 2 line level sources. Two line level and 2 wet IFBs are returned to the other end. One 2ch intercom path is provided, with loop thru connections at each end. 2 analog video paths are provided in each direction.

The MambaINTERVIEW requires only one strand of fiber for its audio facilities, and one strand for the analog video paths.

The MambaHD requires four strands of fiber, one for each of its video paths. Two HD monitor feeds are delivered from the truck, with three outputs of each feed available on the field end. Two HD returns to the truck are available, useful for POV or ENG camera feeds.
